ThingsPro Agent

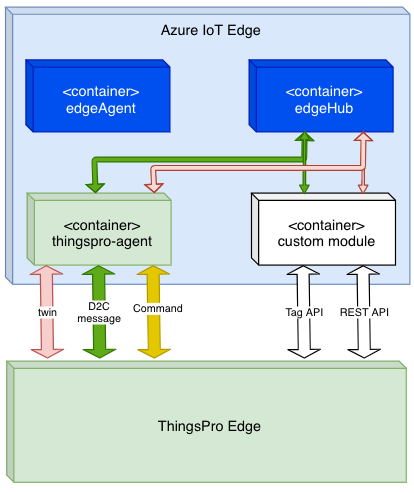

ThingsPro Agent is a module that runs on the Azure IoT Edge to bridge a couple of important functions between ThingsPro Edge and Azure IoT Edge. The role of the ThingsPro Agent is shown in the diagram here.


Installing ThingsPro Agent on ThingsPro Edge​

To install the ThingsPro Agent, do the following:

  1. Create iotedge device.
  2. Set up the ThingsPro Agent (Add a module from the Azure Portal).
  • Docker image:
    • moxa2019/thingspro-agent:2.2.2-amd64
    • moxa2019/thingspro-agent:2.2.2-armhf
  • Container create option
    {
      "HostConfig": {
        "Binds": [
            "/var/thingspro/apps/azureiotedge/data/setting/:/var/thingspro/cloud/setting/",
            "/run/:/host/run/",
            "/var/thingspro/data/:/var/thingspro/data/"
        ]
      }
    }

Last updated on 2022-07-22 by JamesCW Kao
